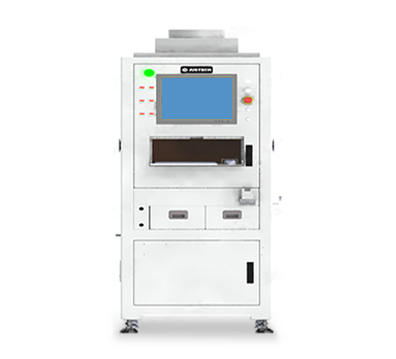

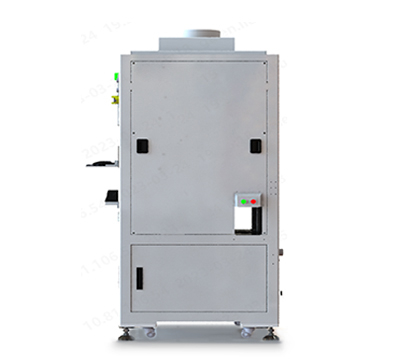

• Model: Assembly machine

• Function: Automatically laminating the back glue to the middle frame

• Advantages:

1. High assembly precision and high efficiency.

2. Pressure-maintaining treatment, stronger adhesion.

3. Product re-inspection, stable equipment process

Product description Product description

After the equipment is powered on and ventilated, the HSG(housing-substrate-glass) is placed on the three-stage streamline, and when it reaches the middle streamline, it is lifted to the assembly position; at the same time, the Robot absorbs the ADH and tears the film; then the ADH is pasted into the HSG, and finally the assembly is completed after pressure maintenance. It can be freely combined with other single machines to form an automated production line according to customer needs.

Technical parameters

Rated voltage: 220V 50HZ

Equipment weight: 750KG

Equipment size: 750mm*800mm*2000mm

Rated power: 1.0 kVA

Air supply: 0.5~0.7Mpa

Product advantages

1. Visual alignment and robot system collaborative assembly, product assembly precision and efficiency

2. After bonding the product, the product is pressure-maintained to make the bonding adhesive area more sticky

3. Final re-inspection of the product after pressure maintenance, stable equipment process
