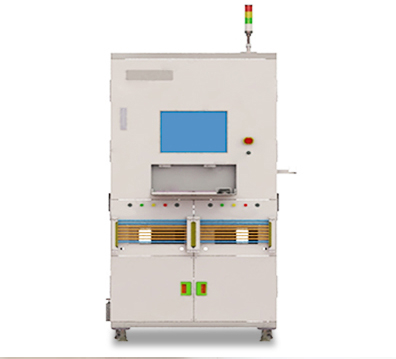

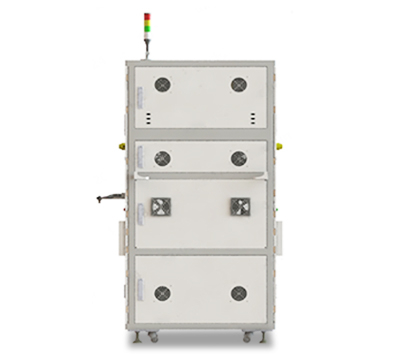

Model: Inspection machine

Function: automatic mobile phone waterproof and leakproof air tightness detection machine

Advantages:

1. High precision differential pressure airtight testing system, high stability;

2. Full set of force control servo control system, real-time adjustable, the whole process monitoring and output pressure curve for data analyzed.

3. Can detect multiple products at the same time to meet the needs of mass production

Product description

After the equipment is powered on and ventilated, the product is placed on the carrier of the test channel. After the position is set, the test channel enters the inside of the equipment. The sealing shaft in three directions of XYZ blocks each test position of the product according to the set stopping force.

After the test system is started, the compressed air of a certain pressure is injected into the test wall after the air pressure is reached, and the pressure difference is changed into the leakage rate for a period of time. Product data is displayed in the UI and uploaded to the cloud.

Technical parameter

Equipment size: 1000mm*650mm*1800mm

Equipment weight 800KG

Rated voltage: 220V

Rated power: 2.5kw

Gas supply: 0.5~0.7Mpa

Product advantage

1, the use of high-precision differential pressure gas measuring instrument, accurate calibration system and differential pressure calculation system, high stability, differential pressure accuracy up to 0.00001bar

2, the whole test process is divided into inflation, pressure regulation, testing, deflating 4 stages, more accurate test the true leakage rate of the product

3, a full set of force control servo control system, the stopping force can be adjusted in real time, the whole process of monitoring force fluctuations, and output pressure curve for data analysis

4, the use of force control control mode, real-time monitoring of the stress of the product during the test process, better protection of the product

5, have the ability to detect multiple products at the same time, enough to meet the needs of mass production, improve production efficiency
