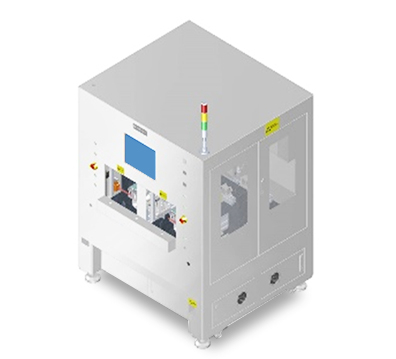

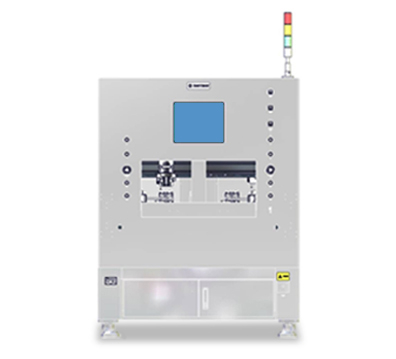

Model: Inspection machine

Function: Detect the break difference and gap of the mobile phone screen, back shell and middle frame after assembly

Advantages:

1. Adopt linear laser measuring instrument, high-precision camera and other mechanism components to achieve stable and efficient detection;

2. Can be used for the detection of different transmittance and different color materials.

3. Break difference and gap detection error within 8%.

4. Independently develop testing procedures; 5. Surface and profile detection

Product description

Equipment size: 1400mm*1300mm*1800mm

Equipment weight 800KG

Rated voltage: 220V

Rated power: 7.5KVA

Gas supply: 0.5~0.7Mpa

Technical parameter

The equipment includes line laser measuring instrument, high precision camera, marble gantry, multi-dimensional rotating platform and other structures. It can detect the break difference and gap of the mobile phone screen, back shell and middle frame after assembly. According to customer needs with other stand-alone free combination into an automated production line.

Product advantage

1. the use of line laser measuring instrument, high-precision camera, marble, high-precision mechanism components, to achieve stable and efficient detection

2. glass, metal and other different transmittance, different color material detection

3. break difference and gap detection error within 8%

4. independent development of testing procedures

5. surface and profile detection
