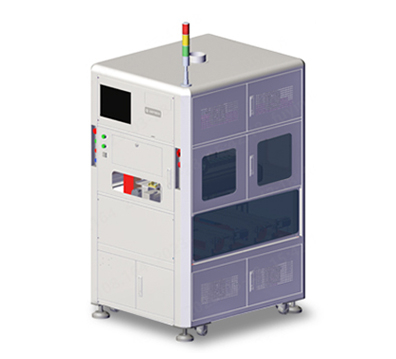

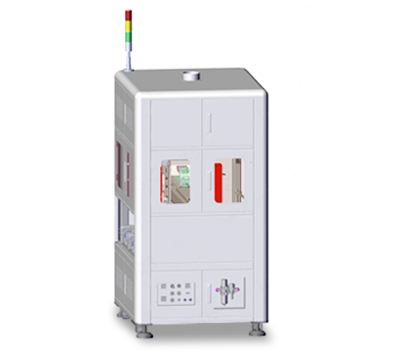

Model: Dispensing machine

Function: Automatic dispensing

Advantages:

1. Five-axis dispensing mechanism is used to achieve flexible dispensing;

2. The positioning turntable mechanism is used to ensure the stability and accuracy of dispensing.

3. CCD visual guide dispensing, higher accuracy and faster efficiency

After the equipment is energized and ventilated, the tooling product is placed on the external flow line manually. When it flows into the top of the equipment, the jacking module lifts the tooling and rotates to the dispensing position. CCD guides the dispensing valve for automatic dispensing and automatically aborts after rechecking OK. According to customer needs with other stand-alone free combination into an automated production line.

Weight: 960KG

Equipment size: 1200mm*1000mm*1800mm

Rated voltage: 220V

Rated power: 4.5KW

Gas supply: 0.5~0.7Mpa

1.five-axis linkage can achieve multi-position product dispensing, dispensing posture is flexible and changeable, suitable for a variety of difficult positions, to achieve product dispensing flexible and changeable, compatible with different dispensing positions and glue valves, CCD

2.the use of positioning turntable mechanism to ensure the stability and accuracy of vehicle dispensing

3.visual guide dispensing valve for collaborative dispensing, dispensing accuracy is high, efficiency is fast

4. after the dispensing is completed, CCD recheck and control the dispensing quality, so as to make the equipment process more stable and reliable
