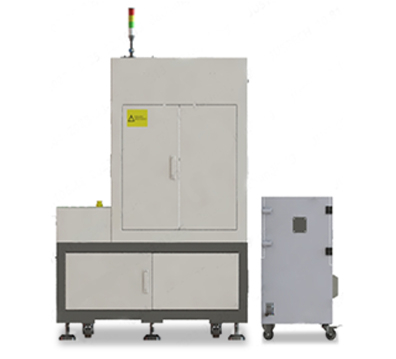

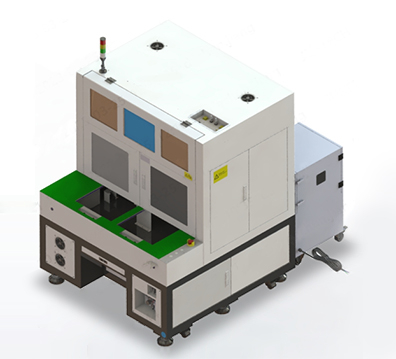

Model: Router

Function: PCBA continuous board cutting

Advantages:

1. High performance, high precision and high-speed cutting spindle, high precision, low noise, high stability;

2. Adopt multi-milling cutter cutting system to meet the needs of mass production;

3. Intelligent tool library system, tool breaking, life, automatic tool change intelligent control; 4. CCD alignment detection system, full monitoring

After the equipment is energized and ventilated, the PCBA whole board is placed on the positioning platform, which automatically enters the cutting station. The CCD takes a photo of each cutting position, the gantry cuts according to the visual real-time position, and the double knife is carried out simultaneously. After the cutting is completed, the recheck camera rechecks each cutting position and uploads the results to the cloud.

Equipment weight: 900KG

Device size: 1400mm*2000mm*1800mm

Rated voltage: 220V

Gas supply: 0.5~0.7Mpa

1. the use of multi-milling cutting system, shorten the time, save labor, to meet the needs of mass production, improve production efficiency at the same time to ensure quality.

2. high-speed electric spindle drives the milling cutter mounted on the above to rotate at high speed, to achieve stress-free automatic segmentation of PCBA board.

3. using CCD and servo control system, high-precision size cutting, CPK up to 1.33, high accuracy, low noise, high stability.

4.knife library intelligent system, knife break, life, automatic tool change intelligent control;

5. CCD alignment detection system, the whole process of monitoring cutting quality and tool use;

6.support product traceability, upload MES system;

7.broken knife detection reminder function
