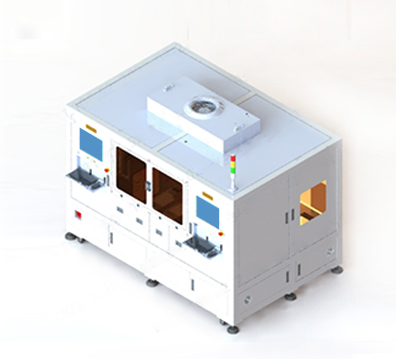

Model: Loading and unloading machine

Function: Automatically place the product from one carrier to another carrier after changing attitude

Advantages:

1. High cleanliness/high precision/high intelligence/high efficiency/high yield;

2. Four-axis manipulator can realize fast handling Angle adjustment.

3. Independent research and development of vision system; 4. A variety of anti-stupid design, safe and reliable

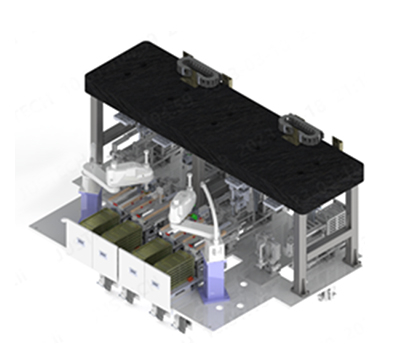

After the equipment is energized and pumped, the silo is placed on the positioning module, the loading tray flows out of the silo, the manipulator absorbs the products on the tray to the transfer mechanism, and the linear module absorbs the products from the transfer mechanism and places the products on the receiving tray through visual alignment.

Equipment weight: 750KG

Equipment size: 750mm*800mm*2000mm

Rated voltage: 220V

Rated power: 15KVA

Gas supply: 0.5~0.7Mpa

1. high cleanliness, used in a hundred clean room

2. high precision, using Mitsubishi manipulator/Huichuan servo motor, equipment accuracy of ±0.02mm

3. high intelligence, motion control and vision system cooperate, effectively eliminate bad incoming materials and monitor poor production, generate data reports

4. High efficiency, the whole machine UPH reaches 1800 PCS

5.high yield, equipment yields 99.99%

6.the use of 4-axis manipulator can achieve rapid handling and Angle adjustment

7. Independently developed vision system

8.a variety of anti-stupid design, abnormal automatic alarm, safe and reliable
