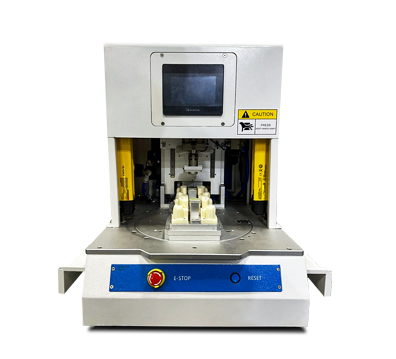

Model: Pressure retaining fixture

Function: Coil attached to the gift box and maintained pressure

Advantages: 1. Platform tooling precision positioning coil and gift box; 2. After laminating the product, the product is treated with pressure retention to make the adhesive area stickiness stronger; 3. Double station rotary disk design, high efficiency, low cost

After the fixture is energized and ventilated, manually put the coil on the platform tooling, and then put the gift box on the tooling, start the pressure holding module, and complete the coil attachment to the gift box.

Length * width * height: 500*400*520 MM

Rated voltage: 220V

Rated power: 50W

Gas supply: 0.5~0.7Mpa

1. Platform tooling precision positioning coil and gift box.

2. After laminating the product, the product is treated with pressure retention to make the adhesive area stickiness stronger.

3. Double station rotary disk design, high efficiency, low cost
