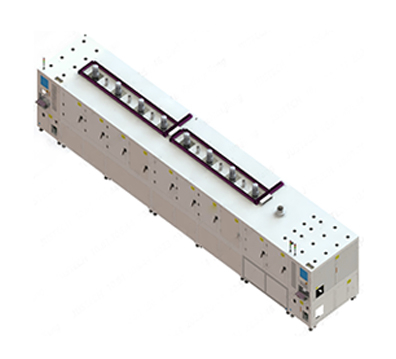

Model: high temperature furnace

Function: High temperature curing

Advantages: 1. High precision intelligent temperature control system accurately control temperature; 2. Professional air system design; 3. multi-heating hot air recycling system, environmental protection and energy saving; 4. The upper and lower 16 channels work independently at the same time, and the conveying speed can be adjusted; 5. Full furnace information, temperature, time, efficiency monitoring

After the equipment is powered up and ventilated, the equipment feeder automatically places the product in the solidified carrier. After scanning the code together with the carrier, the information is uploaded to the cloud.

The system allocates curing channels, and the vehicle is automatically transported to the corresponding channels.

Receiving the cloud information, the equipment feeder automatically goes to the corresponding channel to connect the cured vehicle, and after taking out the product, the vehicle automatically returns to the top feeder to undertake new products.

Equipment size: 12000mm*2200mm*1800mm

Rated voltage: 380V

Rated power: 75KW

Gas supply: 0.5~0.7Mpa

1. Using precision temperature control system, can accurately control the accuracy of temperature, temperature difference fluctuation ±5℃;

2. Automatic tunnel using programmable controller, two-dimensional code information tracking system, high precision, easy to operate, greatly improve productivity.

3. The conveyor belt conveying speed is stable and adjustable, maintenance-free design, saving time and labor

4, when the actual detection temperature exceeds the overtemperature protection thermostat set value, automatically cut off the heating power, play a dual protection function, and is equipped with a safety device, can be long-term continuous operation, energy saving, environmental protection, safety performance is strong

5, professional air system design, to ensure the consistency of heat conduction, convection, temperature uniformity in the furnace

6. Multi-heating hot air recycling system, environmental protection and energy saving
